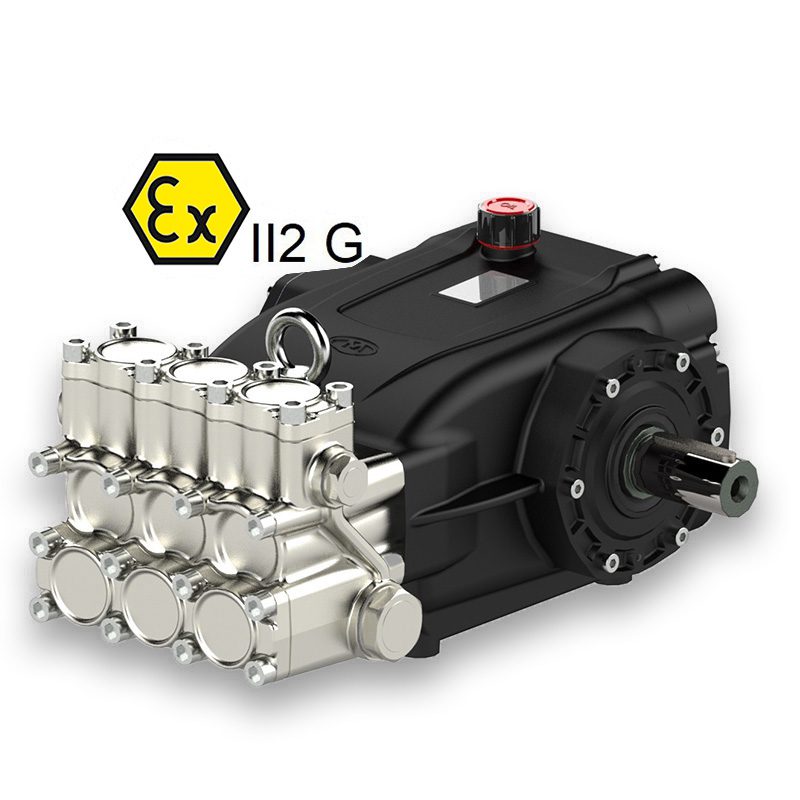

High Pressure Pumps
LM100150
More information coming soon.
Product is built to order (3-5 business days) Minimum
$6,212.99 Including Taxes
| FREQUENCY: | 50Hz |
| RPM: | 1000rpm, 1450rpm |
| FLOW RATE: | 60L/Min, 100L/Min (1000rpm) |
| POWER: | 43.64HP, 38.96HP (50Hz) |
| MAX PRESSURE: | 4060Psi |
| OIL CAPACITY: | 3.1Lt |
| MAX TEMP: | 65ºC |
| INLET: | G 1”(30mm), G 1-1/4”(40mm) |
| OUTLET: | G 3/4”(30mm), G 3/4”(40mm) |
| SHAFT: | 80mmL x 40Ø Shaft |
| PISTON: | 30mm, 40mm |
| Approx Weight: | 54Kg |
More Information
- Forged pump head designed for strength
- ATEX 2 Certified
- Cam-Ground pistons for smoother stroke and better oil-tightness
- Oversized shaft and long end section for better torque transmission
- Extra-thick ceramic pistons for greater durability
- Double gasket sealing system
- Intake and delivery valves with larger water passages
- Tapered roller bearings with high resistance
- Body of the pump designed for long-term durability
- Rods made of a special anti-friction alloy
Customer Testimonials
Coming Soon.
Video Guides
Coming Soon.
| Weight | 54 kg |
|---|---|
| Shaft Position | Right |
