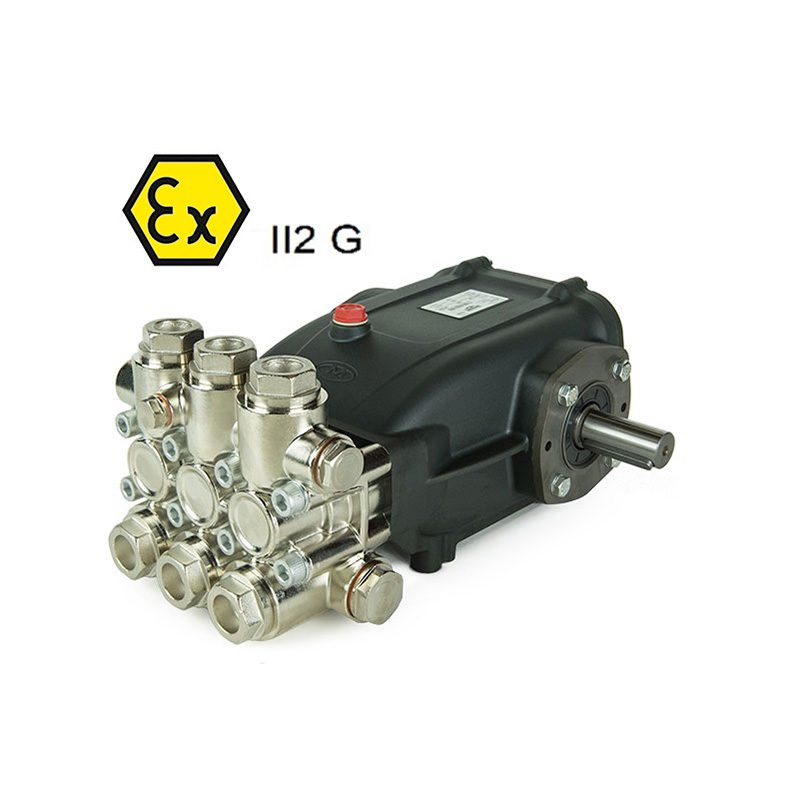

GM-CW22300
, , ,

GM-CW22300

Compare

More information coming soon.

Product is built to order (3-5 business days) Minimum



Financing Options

$1,986.02 Including Taxes

FREQUENCY: 50Hz, 60Hz
RPM: 1450rpm, 1740rpm
FLOW RATE: 18.00 – 63.00L/Min (1450rpm)
21.60 – 75.60L/Min (1740rpm)
POWER: 17.66-21.43HP(50Hz)
20.57-25.71HP(60HZ)
MAX PRESSURE: 4351.13Psi(50Hz)
4351.13Psi(60Hz)
OIL CAPACITY: 0.31Lt
MAX TEMP: 65ºC
INLET: G 3/4”
OUTLET: G 1/2”
SHAFT: 45mmL x 24Ø, 55mmL x 24Ø Shaft
PISTON: 20mm, 22mm, 25mm
Approx Weight: 20Kg



More Information

  • Nickel plated head designed for strength
  • ATEX 2 Certified
  • Cam-Ground pistons for smoother stroke and better oil-tightness
  • Oversized shaft and long end section for better torque transmission
  • Extra-thick ceramic pistons for greater durability
  • Double gasket sealing system
  • Intake and delivery valves with larger water passages
  • Tapered roller bearings with high resistance
  • Body of the pump designed for long-term durability
  • Rods made of a special anti-friction alloy

Customer Testimonials

Coming Soon.

Video Guides

Coming Soon.

SKU: MZP3032002-1 Categories: , , , Tags: , , , ,
Weight 20 kg
